AFR-Series

High Precision Gearbox

OVERVIEW

Output torque

T2N : 9 Nm - 2000 Nm

Ratios:

1-stage :3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 14 / 20

2-stage :15 / 20 / 25 / 30 / 35 / 40 / 45 / 50 / 60 / 70 / 80 / 90 / 100 / 120 / 140 / 160 / 180 / 200

*Only AFR042 2-stage offers 15,20 option

Low backlash

1-stage : ≦2arcmin / ≦4arcmin / ≦6arcmin

2-stage : ≦4arcmin / ≦7arcmin / ≦9arcmin

High efficiency

1-stage : ≧ 95%

2-stage : ≧ 92%

Easy mount

Low noise

SIZE

ABR042 / ABR060 / ABR090 / ABR115 / ABR142 / ABR180 / ABR220

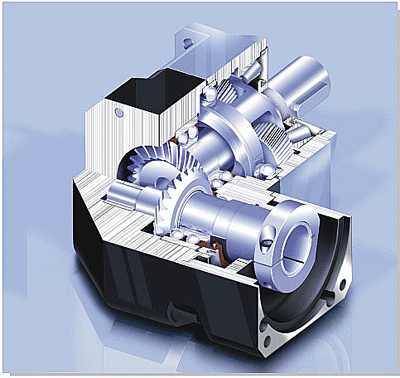

Features
  1. Higher output torque rating by using spiral bevel gear design. 30% more than straight bevel gear.
  2. Allows input speeds up to 8 times than with straight bevel gearing.
  3. Improved load sharing through precision tooth design and longer service life.
  4. Ground gears verified with sophisticated software, ensures smooth, quiet operation with reduced backlash(<=2arcmin)
  5. High tensile low weight single piece aluminum alloy housing for highest stiffness.
  6. Maintenance free lifetime lubrication.
  7. Patented sealing design for high speed and continuous running.
  8. High efficiency up to 95%. Low noise level down to 61 dB.
  9. Most ratios available from 3~200.
Specification
Gearbox Performance

Model No.

Stage Ratio1 AFR042 AFR060 AFR075 AFR100 AFR140 AFR180 AFR220
Nominal Output TorqueT2N Nm 1 3 9 36 90 195 342 588 1,140
4 12 48 120 260 520 1,040 1,680
5 15 60 150 325 650 1,200 2,000
6 20 55 150 310 600 1,100 1,900
7 19 50 140 300 550 1,100 1,800
8 17 45 120 260 500 1,000 1,600
9 14 40 100 230 450 900 1,500
10 14 60 150 325 650 1,200 2,000
14 - 42 140 300 550 1,100 1,800
20 - 40 100 230 450 900 1,500
2 15 14 - - - - - -
20 14 - - - - - -
25 15 60 150 325 650 1,200 2,000
30 20 55 150 310 600 1,100 1,900
35 19 50 140 300 550 1,100 1,800
40 17 45 120 260 500 1,100 1,600
45 14 40 100 230 450 900 1,500
50 14 60 100 230 650 1,200 2,000
60 20 55 150 310 600 1,100 1,900
70 19 50 140 300 550 1,100 1,800
80 17 45 120 260 500 1,000 1,600
90 14 40 100 230 450 900 1,500
100 14 40 100 230 450 900 1,500
120 - - 150 310 600 1,100 1,900
140 - - 140 300 550 1,100 1,800
160 - - 120 260 550 1,000 1,600
180 - - 100 230 450 900 1,500
200 - - 100 230 450 900 1,500
Emergency Stop Torque T2NOT3 Nm 1,2 3~200 3 times of Nominal Output Torque
Nominal Input Speed N1N rpm 1,2 3~200 5,000 5,000 4,000 4,000 3,000 3,000 2,000
Max. Input Speed N1B rpm 1,2 3~200 10,000 10,000 8,000 8,000 6,000 6,000 4,000
Micro Backlash  P0 arcmin 1 3~20 - - ≤ 2 ≤ 2 ≤ 2 ≤ 2 ≤ 2
2 25~200 - - ≤ 4 ≤ 4 ≤ 4 ≤ 4 ≤ 4
Reduced Backlash  P1 arcmin 1 3~20 ≤ 4 ≤ 4 ≤ 4 ≤ 4 ≤ 4 ≤ 4 ≤ 4
2 25~200 ≤ 7 ≤ 7 ≤ 7 ≤ 7 ≤ 7 ≤ 7 ≤ 7
Standard Backlash P2 arcmin 1 3~20 ≤ 6 ≤ 6 ≤ 6 ≤ 6 ≤ 6 ≤ 6 ≤ 6
2 25~200 ≤ 9 ≤ 9 ≤ 9 ≤ 9 ≤ 9 ≤ 9 ≤ 9
Torsional Rigidity  Nm /
arcmin 		1,2 3~200 3 7 14 25 50 145 225
Max. Radial Load F2rB2 N 1,2 3~200 610 1,400 4,100 9,200 14,000 18,000 33,000
Max. Axial Load   F2a1B2 N 1,2 3~200 302 1,000 3,300 5,220 10,800 13,000 25,000
F2a2B2 N 1,2 3~200 320 1,100 3,700 5,800 11,400 19,500 16,300
Service Life hr 1,2 3~200 30,000 *
Efficiency % 1 3~20 ≧95 %
2 25~200 ≧92 %
Weight   kg 1 3~20 0.9 2.1 6.4 13.9 23.7 50 83
2 25~200 1.2 1.5 7.8 15.1 26.7 54 95
Operating Temp ºC 1,2 3~200 -10ºC~90ºC
Lubrication   - - synthetic gear grease (NYOGEL 792D)
Degree of Gearbox Protection   1,2 3~200 IP65
Mounting Position   1,2 3~200 all directions
Noise Level
(n1=3000 rpm,No Load)		 dB(A) 1,2 3~200 ≤ 61 ≤ 63 ≤ 65 ≤ 68 ≤ 70 ≤ 72 ≤ 74
1.Ratio ( i=N in / Nout )

2. Applied to the output shaft center @ 100 rpm
3.Max. acceleration torque T2B = 60% of T2NOT
*S1 service life 15,000 hrs.
Gearbox Inertia

Model No.

Stage Ratio1 AFR042 AFR060 AFR075 AFR100 AFR140 AFR180 AFR220
Mass Moments
of inertia J1 		kg‧cm2  1 3~10 0.09 0.35 2.25 6.84 23.4 68.9 135.4
14 - 0.07 1.87 6.25 21.8 65.6 119.8
20 - 0.07 1.87 6.25 21.8 65.6 119.8
2 15 0.09 - - - - - -
20 0.09 - - - - - -
25~100 0.09 0.09 0.35 2.25 6.84 23.4 68.9
120~200 - - 0.31 1.87 6.25 21.8 65.6
Dimension
1-stage , Ratio i = 3 ~ 10
AFR042 AFR060 AFR075 AFR100 AFR140 AFR180 AFR220
D1 50 68 85 120 165 215 250
D2 3.4 5.5 6.8 9 11 13 17
D3 j6 13 16 22 32 40 55 75
D4 g6 35 60 70 90 130 160 180
D5 22 45 60 80 75 95 115
D6 M4 X 0.7P M5 X 0.8P M8 X 1.25P M12X1.75P M16 X 2P M20 X 2.5P M20 X 2.5P
L1 42 62 76 105 142 180 220
L2 19.5 28.5 36 58 82 82 105
L3 6.5 20 20 30 30 30 33
L4 1 1.5 2 2 3 3 3
L5 16 25 32 40 63 70 90
L6 2 2 3 5 5 6 7
L7 4 6 7 10 12 15 20
L8 111.5 150 219 269.5 338.5 397 484
L9 42 60 90 115 142 180 220
L10 10 12.5 19 28 36 42 42
C1 3 46 70 100 130 165 215 235
C2 3 M4 X 0.7P M5 X 0.8P M6 X 1P M8 X 1.25P M10 X 1.5P M12 X 1.75P M12 X 1.75P
C3 3 ≤11 ≤14 / ≤16 ≤19 / ≤24 ≤32 ≤38 ≤48 ≤55
C4 3 25 34 40 50 60 85 116
C5 3 30 50 80 110 130 180 200
C63 3.5 8 4 5 6 6 6
C7 3 42 60 90 115 142 190 220
C8 3 29.5 19 17 19.5 22.5 29 63
C9 3 90.5 111.5 152.5 191.5 235.5 303.5 378.5
C10 3 8.75 13.5 10.75 13 15 20.75 53
B1 h9 5 5 6 10 12 16 20
H1 15 18 24.5 35 43 59 79.5

3. C1~C10 are motor specific dimensions (metric std shown).
* AFR060M1 offers C3 ≤16 option.
* AFR075M1 offers C3 ≤24 option.

2-stage , Ratio i = 15 ~ 100
AFR042 AFR060 AFR075 AFR100 AFR140 AFR180 AFR220
D1 50 68 85 120 165 215 250
D2 3.4 5.5 6.8 9 11 13 17
D3 j6 13 16 22 32 40 55 75
D4 g6 35 60 70 90 130 160 180
D5 22 45 60 80 75 95 115
D6 M4 X 0.7P M5 X 0.8P M8 X 1.25P M12 X1.75P M16 X 2P M20 X 2.5P M20 X 2.5P
L1 42 62 76 105 142 180 220
L2 19.5 28.5 36 58 82 82 105
L3 6.5 20 20 30 30 30 33
L4 1 1.5 2 2 3 3 3
L5 16 25 32 40 63 70 90
L6 2 2 3 5 5 6 7
L7 4 6 7 10 12 15 20
L8 139 168.5 222.5 295.5 370.5 434 521
L9 42 60 90 115 142 180 220
L10 10 12.5 19 28 36 42 42
C1 4 46 46 70 100 130 165 215
C2 4 M4 X 0.7P M4 X 0.7P M5 X 0.8P M6 X 1P M8 X 1.25P M10 X 1.5P M12 X 1.75P
C3 4 ≤11 ≤11 / ≤12 ≤14 / ≤15.875 / ≤16 ≤19 / ≤24 ≤32 ≤38 ≤48
C4 4 25 25 34 40 50 60 85
C5 4 30 30 50 80 110 130 180
C6 4 3.5 3.5 8 4 5 6 6
C7 4 42 42 60 90 115 142 190
C8 4 29.5 29.5 19 17 19.5 22.5 29
C9 4 90.5 99.5 126.5 165 205 254.5 323.5
C10 4 8.75 8.75 13.5 10.75 13 15 20.75
B1 h9 5 5 6 10 12 16 20
H1 15 18 24.5 35 43 59 79.5

4. C1~C10 are motor specific dimensions (metric std shown). * AFR060M1 offers C3 ≤12 option. * AFR075M1 offers C3 ≤16 option. * AFR075M1 offers C3 ≤15.875 option. * AFR100M1 offers C3 ≤24 option.
