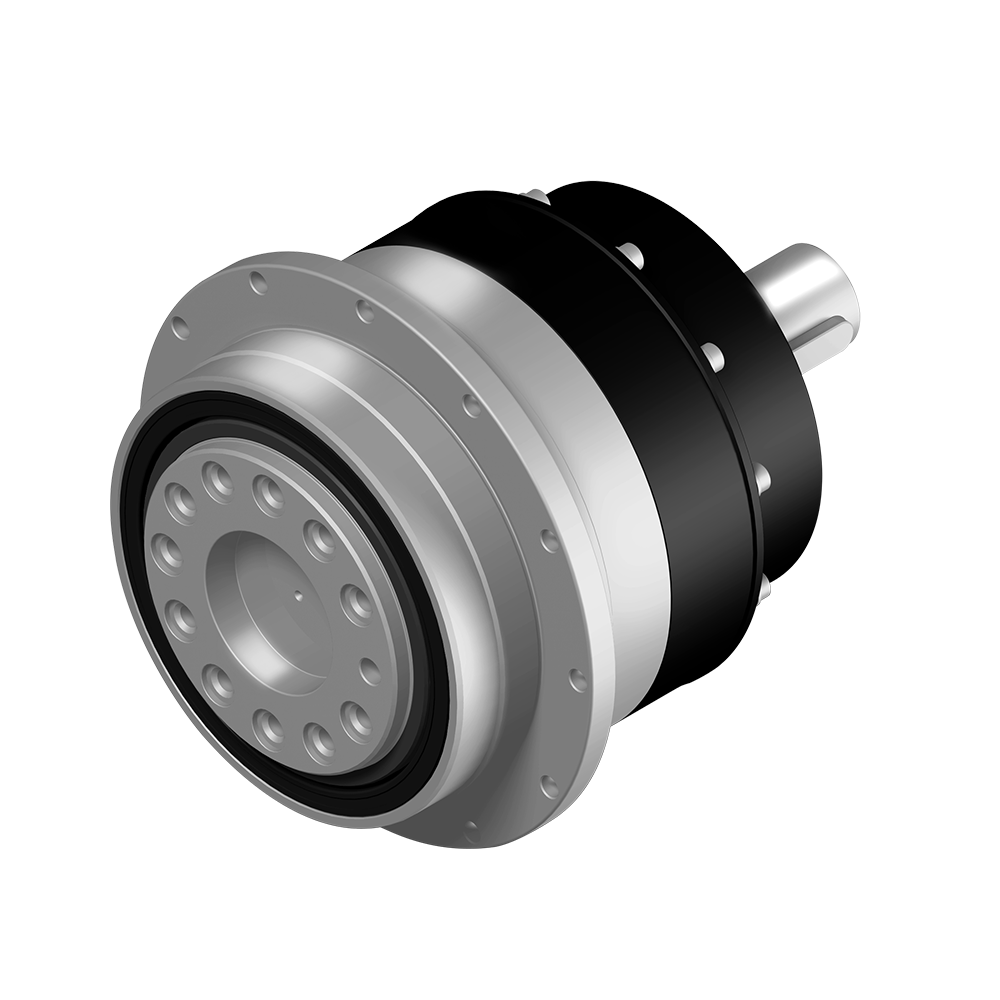

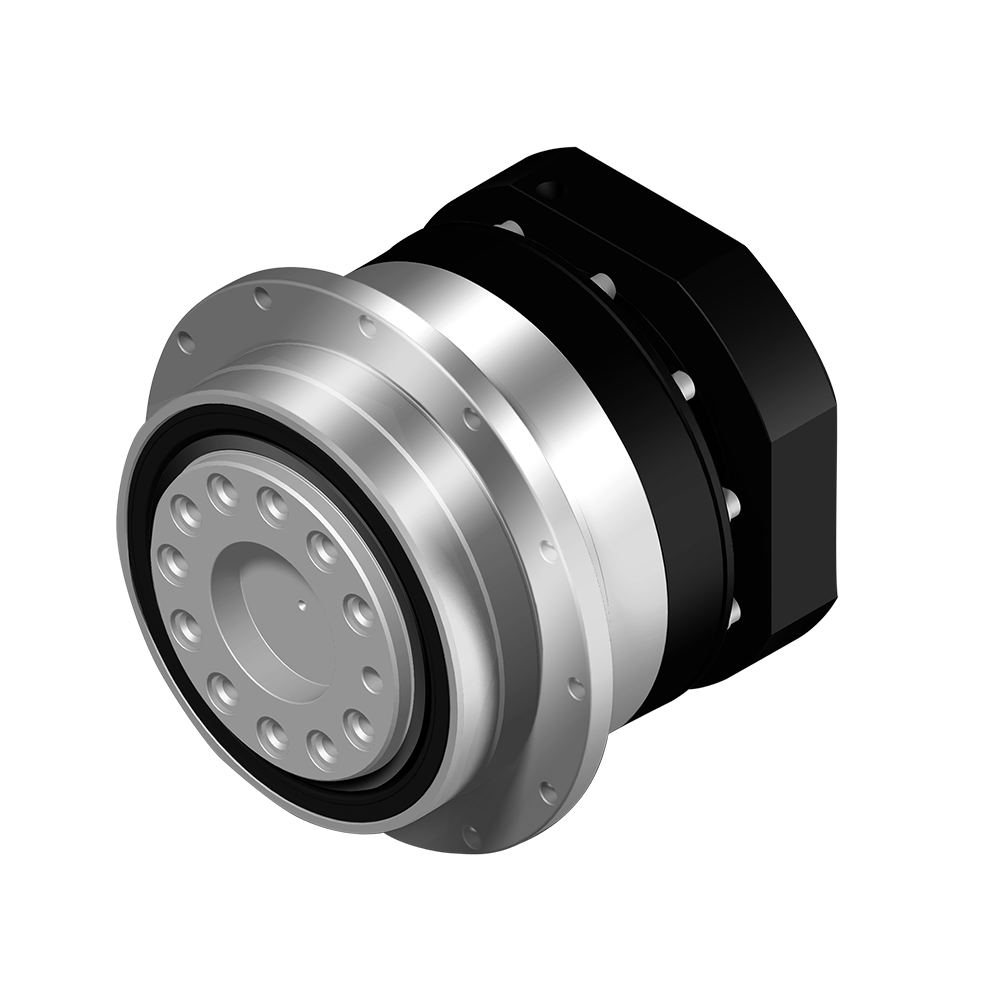

AD / ADR / ADS Series

Feature

• Stainless Construction
• Low Backlash
• Maintenance Free
• Low Noise
• Optimized Inertia Moment
• Long Service Life
• Various Shaft or Flange Output

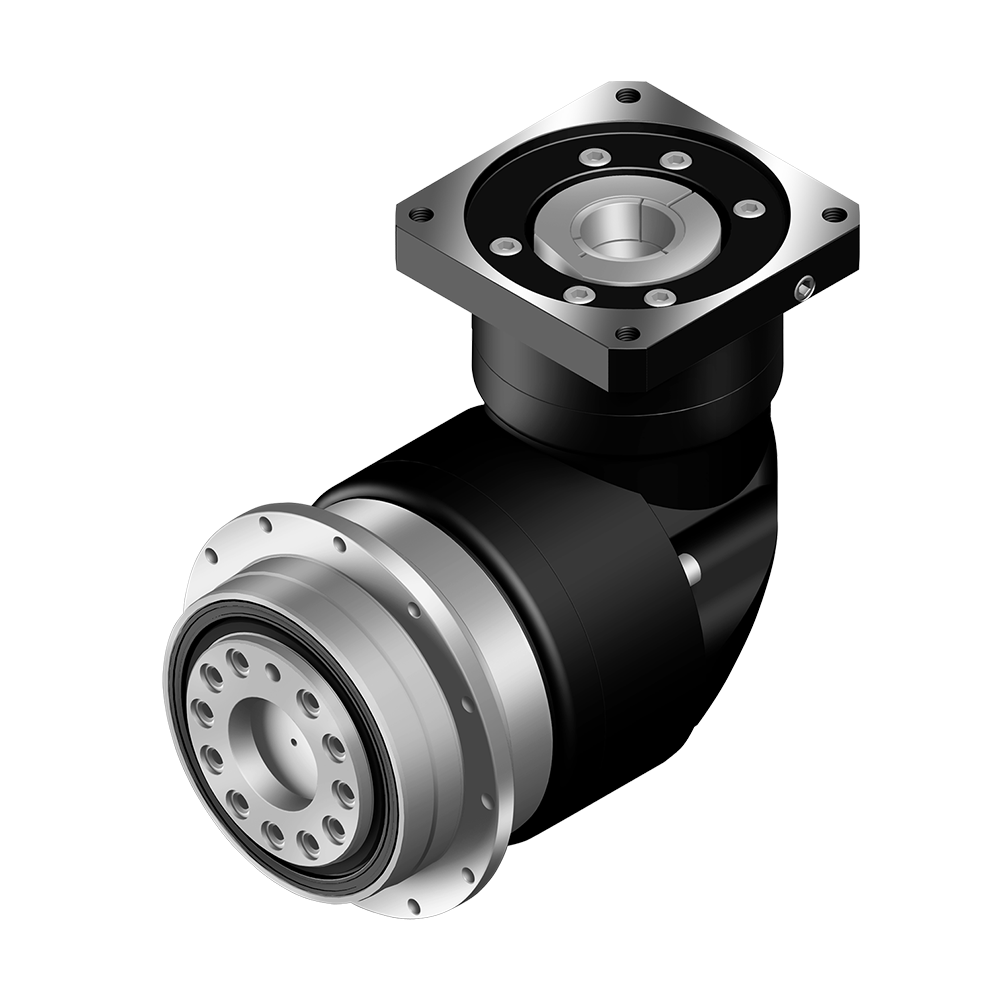

• Bevel-Gear Right-Angle Design

Overview

Output Torque

• AD Series T2N : 14 Nm - 2000 Nm
• ADS Series T2N : 14 Nm - 2000 Nm
• ADR Series T2N : 14 Nm - 2000 Nm

Ratios

• AD Series : 4 ~ 100
• ADS Series : 4 ~ 91
• ADR Series : 4 ~ 200

*Only ADR047 offers 20 option

Low Recoil

• AD Series : ≦1 arcmin ~ ≦7 arcmin
• ADS Series : ≦1 arcmin ~ ≦7 arcmin
• ADR Series : ≦2 arcmin ~ ≦9 arcmin

High Efficiency

• AD Series : ≧ 97% / ≧ 94%
• ADS Series : ≧ 97% / ≧ 94%
• ADR Series : ≧ 95% / ≧ 92%

Size

• AD047 ~ AD255
• ADS047 ~ ADS255
• ADR047 ~ ADR225
