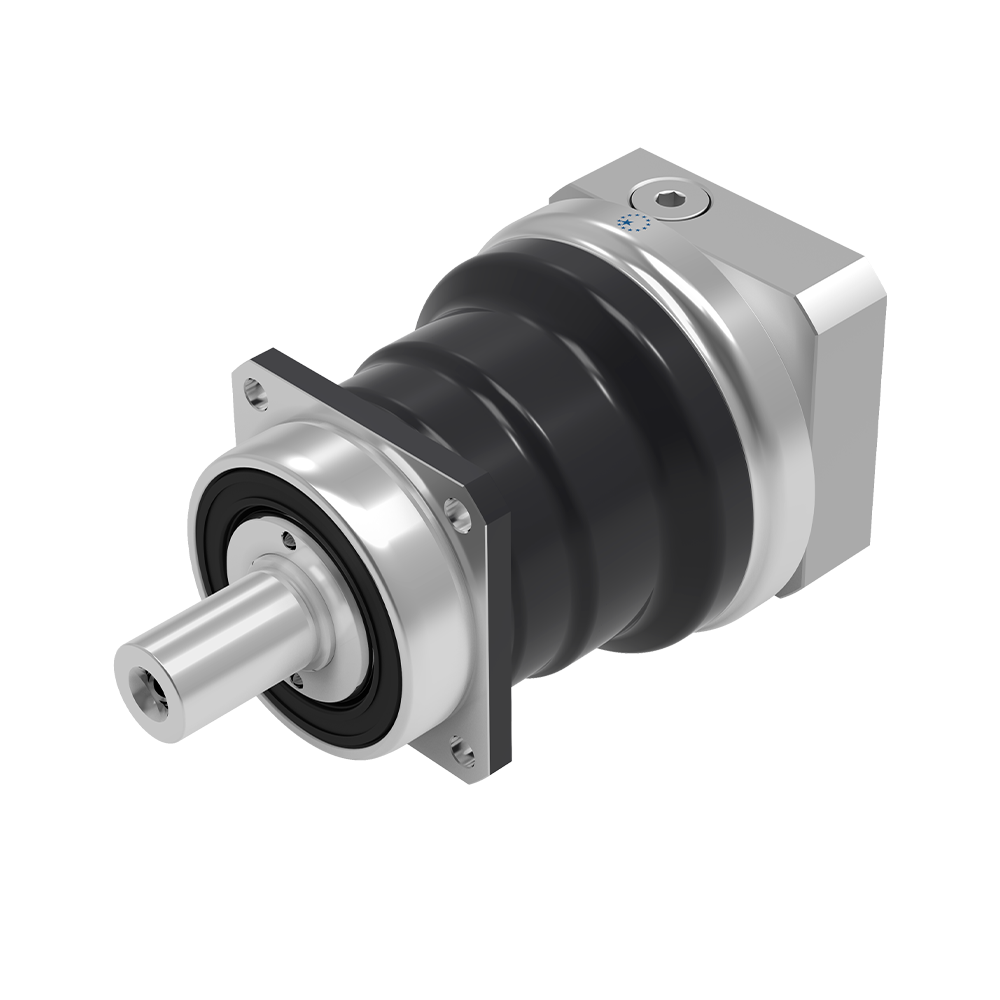

AFH / AFHK Series

Feature

• High Torque
• High Precision
• High Torsional Rigidity
• Long-Term Persistence of Low Backlash
• Long Service Life
• High Efficiency / Optimized Inertia Moment

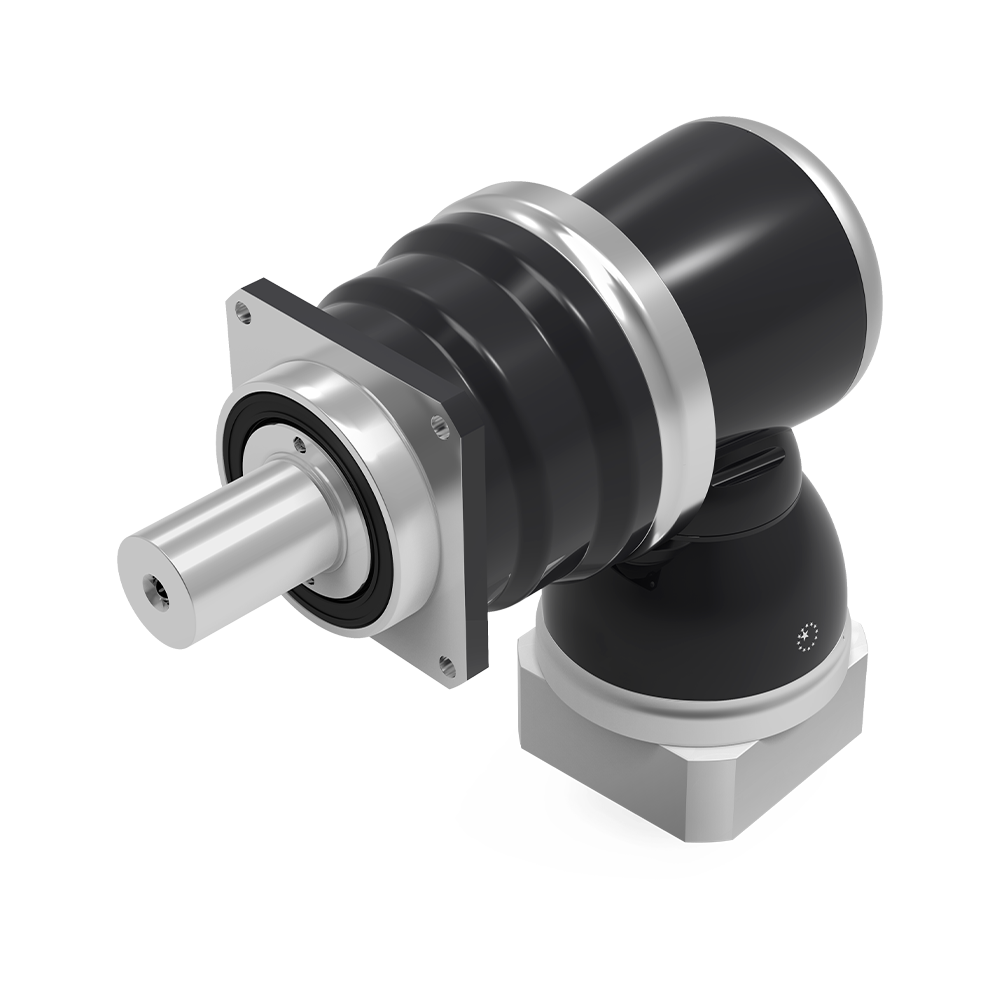

• Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series
• Various Shaft or Flange Output Interfaces

Overview

Output torque

• AFH Series T2N : 24 Nm - 4090 Nm
• AFHK Series T2N : 24 Nm - 3350 Nm

Ratios

• AFH Series : 3 ~ 100
• AFHK Series : 4 ~ 10000

Low Backlash

• AFH Series : ≦2 arcmin ~ ≦3 arcmin
• AFHK Series : ≦2 arcmin ~ ≦3 arcmin

High Efficiency

• AFH Series : ≧ 97% / ≧ 94%
• AFHK Series : ≧ 95% / ≧ 90%

Size

• AFH060 ~ AFH240
• AFHK060 ~ AFHK240
