Feature
- High Torque
- High Torsional Rigidity
- High Precision
- Long-Term Persistence of Low Backlash
- Long Service Life
- High Efficiency / Optimized Inertia Moment

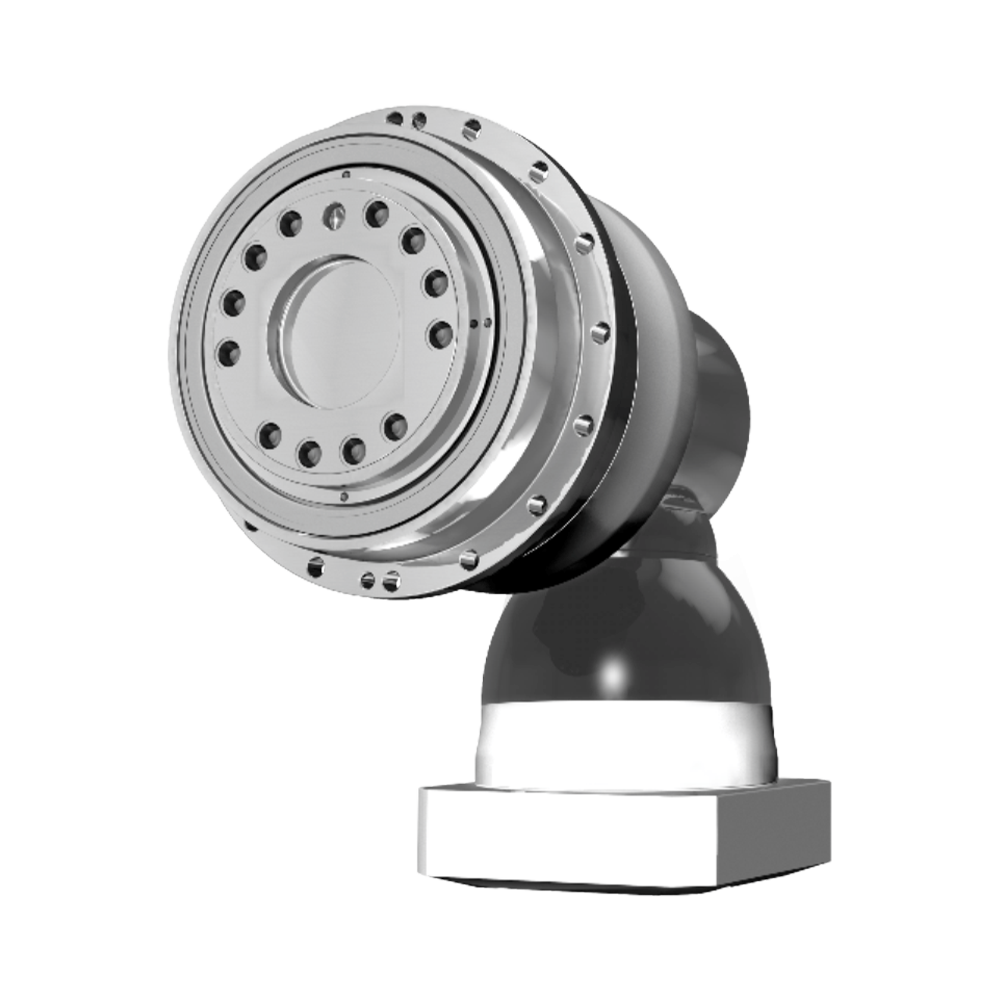

- Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series
Overview
Output torque
- MD Series T2N : 24 Nm - 12495 Nm
- MDK Series T2N : 24 Nm - 13585 Nm
Ratios
- MD Series : 4 ~ 100
- MDK Series : 4 ~ 10000
Low Backlash
- MD Series : ≦3 arcmin ~ ≦4 arcmin
- MDK Series : ≦4 arcmin
High Efficiency
- MD Series : ≧ 97% / ≧ 94%
- MDK Series : ≧ 94% / ≧ 90%
Size
- MD064 ~ MD450
- MDK064 ~ MDK450
