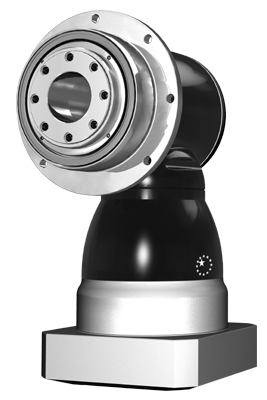

KH Series

High Precision Gearbox

OVERVIEW

Output torque

T2N :12 Nm - 3,200 Nm

Ratios:

1-stage :3 / 4 / 5 / 7 / 10

Low backlash

1-stage :≦ 3 arcmin

High efficiency

1-stage :≧ 96%

Easy mount

Low noise

Compact structure

SIZE

KH064 / KH090 / KH110 / KH140 / KH200 / KH255 / KH285

Specification
Hypoid Gearbox Series KH - Series
  1. Innovative Hypoid Helical Bevel Gear
  2. Optimized Inertia Moment
  3. High Positioning Accuracy
  4. High Efficiency
  5. Low Noise
  6. Long Service Life
  7. Flexible Mounting
  8. Multiple Output Types
  9. Same Rotating Direction on Output as the Servo-Motor
Specification

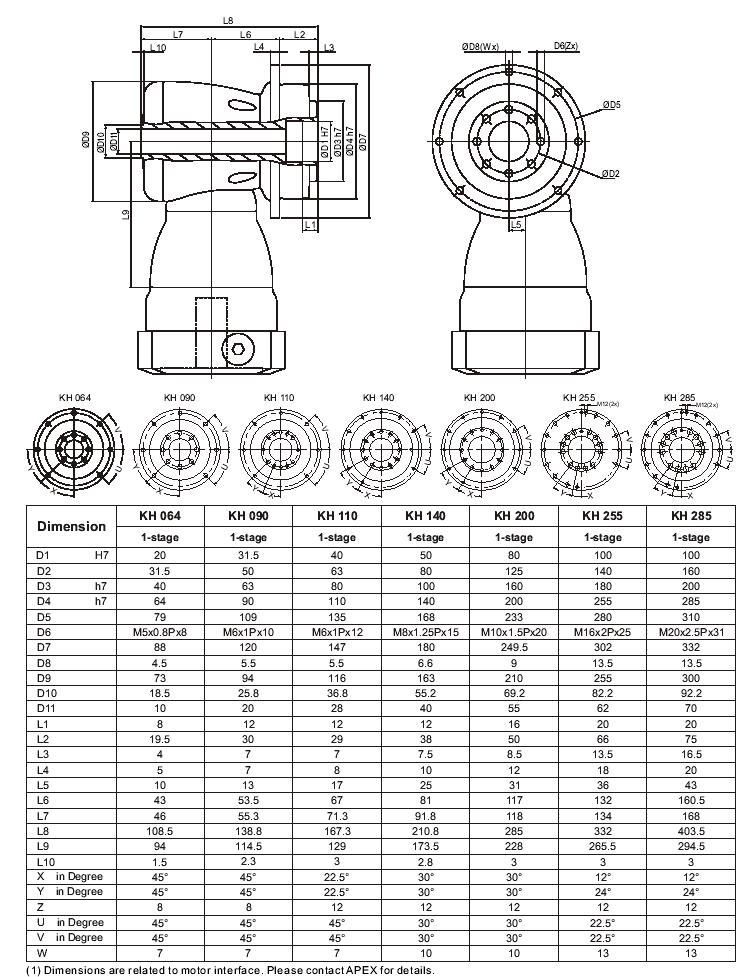

Dimension
