PLR-Series

High Precision Gearbox

OVERVIEW

Output torque

T2N :27 Nm - 143 Nm

Ratios:

1-stage :3 / 4 / 5 / 7 / 10
2-stage :12 / 15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 100

Low backlash

1-stage :≤ 10 ~ 11 arcmin
2-stage :≤ 12 ~ 13 arcmin

High efficiency

1-stage :≧ 93%
2-stage :≧ 90%

Easy mount

Low noise

Compact structure

SIZE

PLR 070 / PLR 090 / PLR 120

Features
Planetary Gearbox New Generation P II - Series PDR II - Series
  1. Economic
  2. High efficiency
  3. Low noise
  4. Reduced backlash
  5. Optimized inertia moment
  6. Limited temperature rise
  7. Long service life
  8. Flexible mounting diameters
  9. Minimized size and weight
Specification

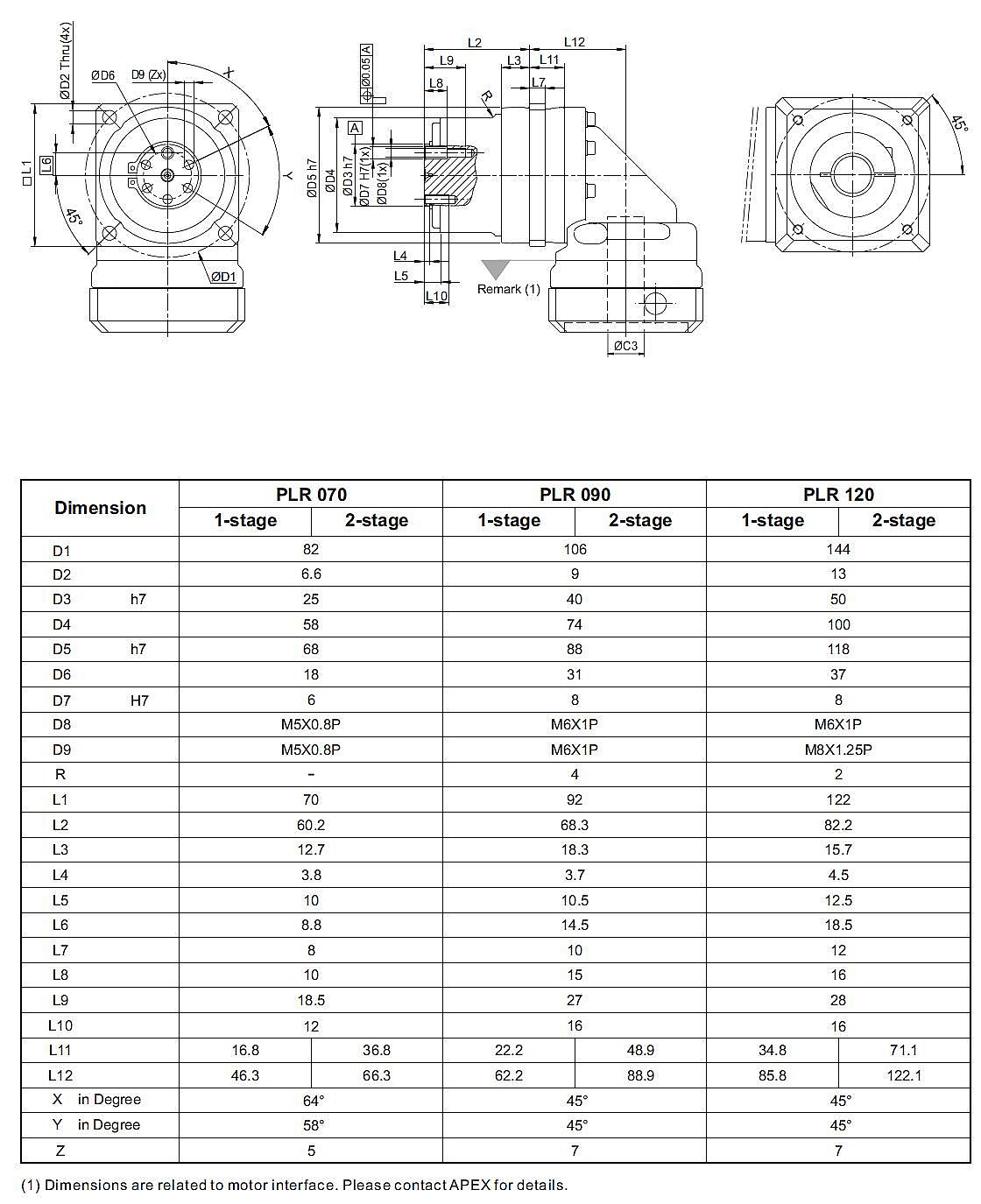

Dimension
